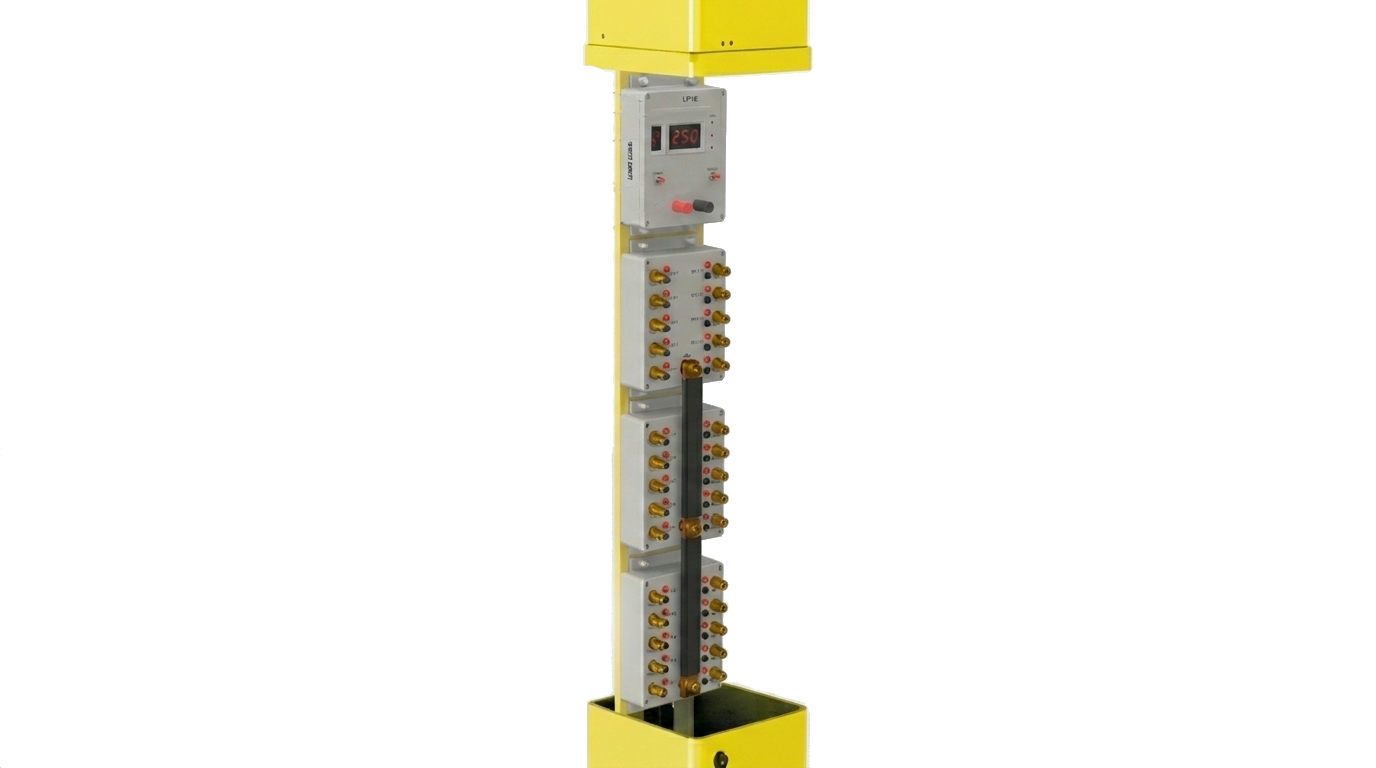

CP Monitoring Systems
Senior Electronics Design Engineer
Specialized cathodic protection (CP) monitoring systems for underground structures with integrated wireless telemetry.
Engineering Contribution
- Hardware Design: Developed multi-channel current monitoring systems for harsh industrial environments.
- Firmware Development: Implemented low-power data acquisition algorithms and enabled integration with wireless communication modules for remote diagnostics.
- Quality Control: Designed a specialized hardware-software test bench for automated PCB quality control, reducing production line defects.
- Remote Management: Developed integrated tools for remote data collection and field-layer diagnostics.
Project Overview
Current Control Unit (CCU) is designed to monitor and measure the current flowing through anode groundbed circuits. It is installed at cathodic protection stations (CPS) to monitor the individual current of each anode.
Serving as an advanced alternative to traditional terminal cabinets, the unit supports simultaneous connection of up to 30 anode groundbeds with a maximum current of 20A per channel.
Engineering Focus:
- Simultaneous monitoring of up to 30 channels
- High-current measurement (up to 20A per anode)
- Replacement for legacy terminal cabinets
- Integration with CPS infrastructure for real-time monitoring
